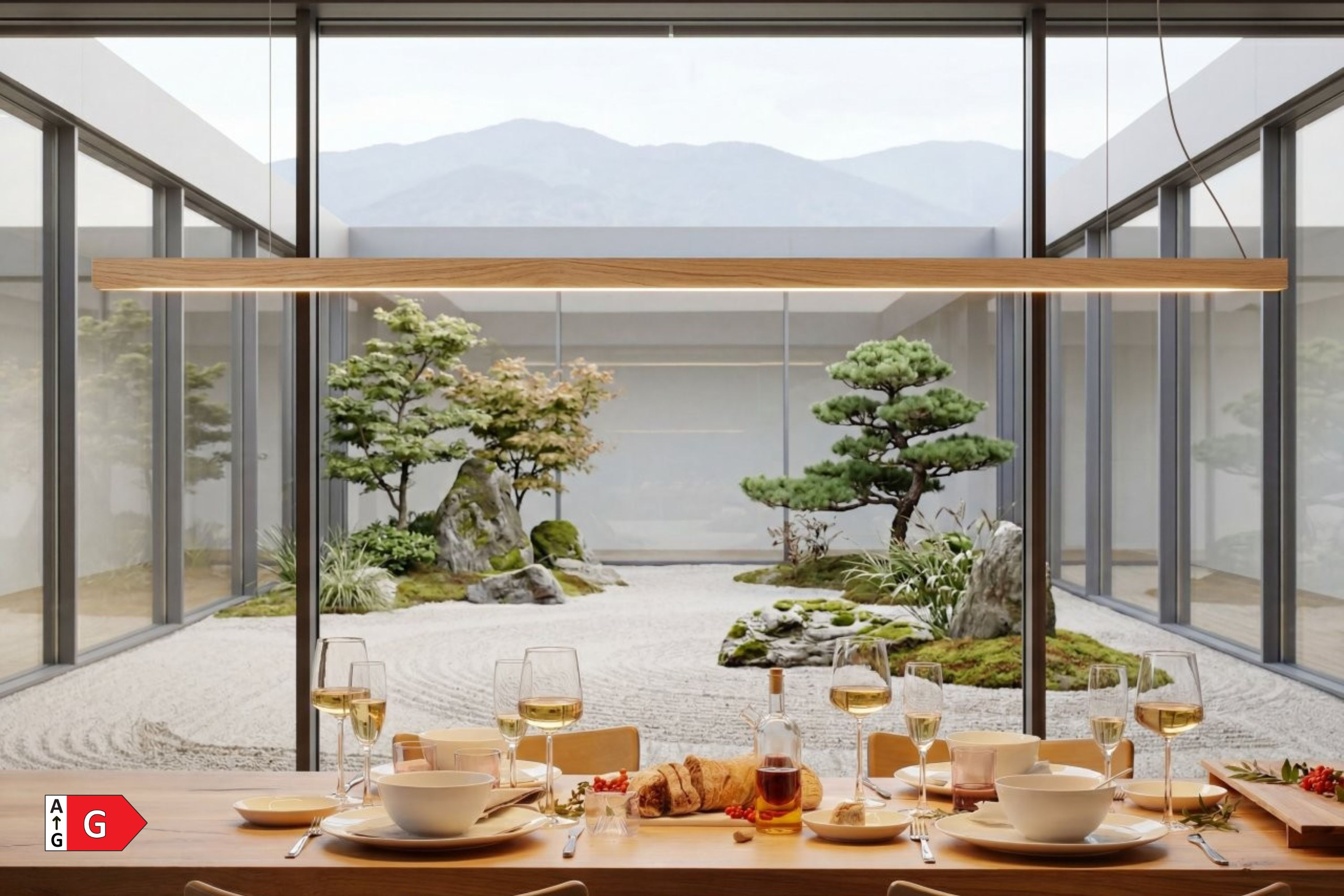

Led40 Pendant

Measurements: L.700, 1000, 1300 , 1600 x H.canopy 35 x W.220 x D.100 mm



Wood: W.40 x H.40 mm



Weight: 1,8, 2,0 2,3, 2,6 Kg



Suspension Height: 2 m - The cable can be shortened



Mounting and Connection: Canopy and connection in the same position

Light Direction: Light directed downwards



Adjustability: Fixed



Light Source: LED



Energy Efficiency Class: G



LED Lifespan: 50,000 hours



Power: 16, 22, 28, 34 Watt



Voltage: 220 - 240 V



Lumen: 750, 1100, 1630, 1800 lm



Color Temperature: 2700, 3000 Kelvin



Color Rendering: Ra = 93 (best possible color rendering Ra = 100)

Control Via: DALI system

4-Wire System: Requires active, neutral, and two control wires at the ceiling outlet

Dimming: Continuously dimmable

External Operation: Wall switch (DALI)



Control Via: Push system

3-Wire System: Requires active, neutral, and one control wire at the ceiling outlet

Dimming: Continuously dimmable

External Operation: Wall switch (Push)



Control Via: Casambi Bluetooth system

2-Wire System: Requires active and neutral wires at the ceiling outlet

Dimming: Continuously dimmable

External Operation: Tunto EnOcean switch/ Smartphone/ Tablet

Installation: All installation work must be carried out by qualified personnel



Safety Class: IP20 - Protected against solid foreign matter with a diameter starting at 12.5 mm, no water protection



Protection Class: Class II



Marking: CE mark



Use: Indoor use only



Exchange LED Module: Non-user replaceable light source

Wood Quality: Wood, being a vibrant and organic material, exhibits natural variations in patterns and shades. Additionally, its hue may evolve over time as the material matures.



Cleaning: We recommend dusting your model frequently with a clean, soft, dry, lint-free cloth



Care: Avoid extreme changes in temperature by arranging furniture away from radiators, heat and air vents, and air conditioning units

Product Information: Download

Assembly Instruction: Download



Casambi Driver (LCM40BLE): Download

Dali/ Push Driver (LCM40DA): Download

Led40 700 mm: 2700 Kelvin, 3000 Kelvin

Led40 1000 mm: 2700 Kelvin, 3000 Kelvin

Led40 1300 mm: 2700 Kelvin, 3000 Kelvin

Led40 1600 mm: 2700 Kelvin, 3000 Kelvin

Round Canopy: 2Lines

Recommended Model: Choose ⌀ 180 mm



Wireless Switch: Tunto EnOcean Switch

Recommended Model: Single rocker

Required Driver: Casambi Dim
